800HD

Categories: ,

Stronger, Last Longer, More control

  • Stainless Steel parts
  • Precise 3 way saliva restriction system
  • 190kg Heaviest on the market
  • 2x 60mm SHS skids
  • 2 year warranty*

Description

Weight: 190kg

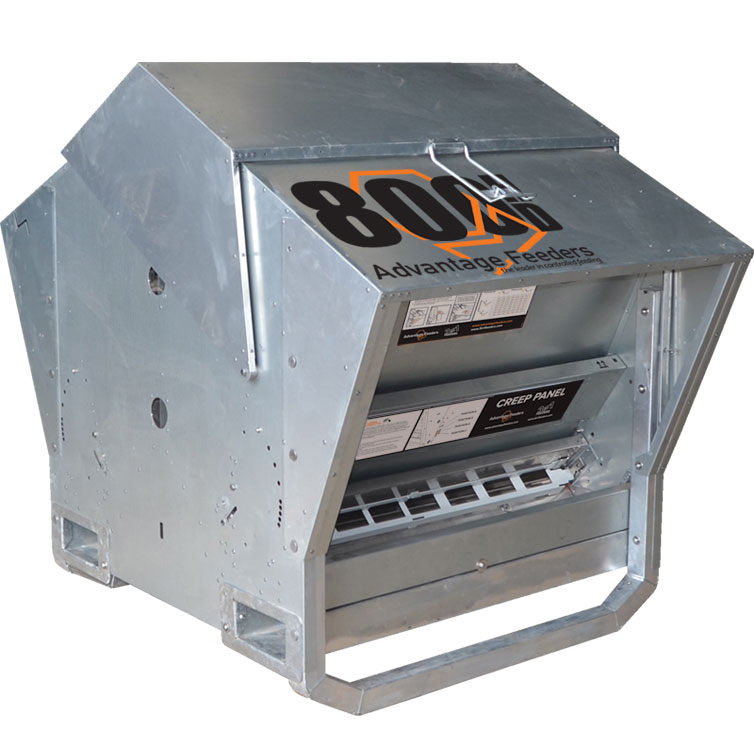

Dimensions at sheep height :
1200 x 1650 x 1250 (LxWxH)

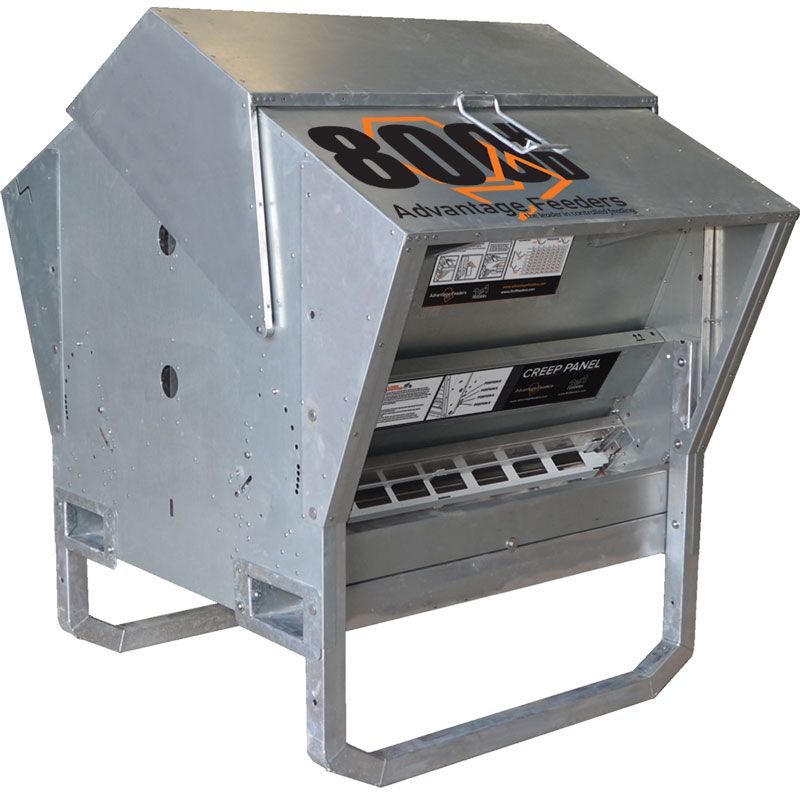

Dimensions at cattle height:
1200 x 1650 x 1450 (LxWxH)

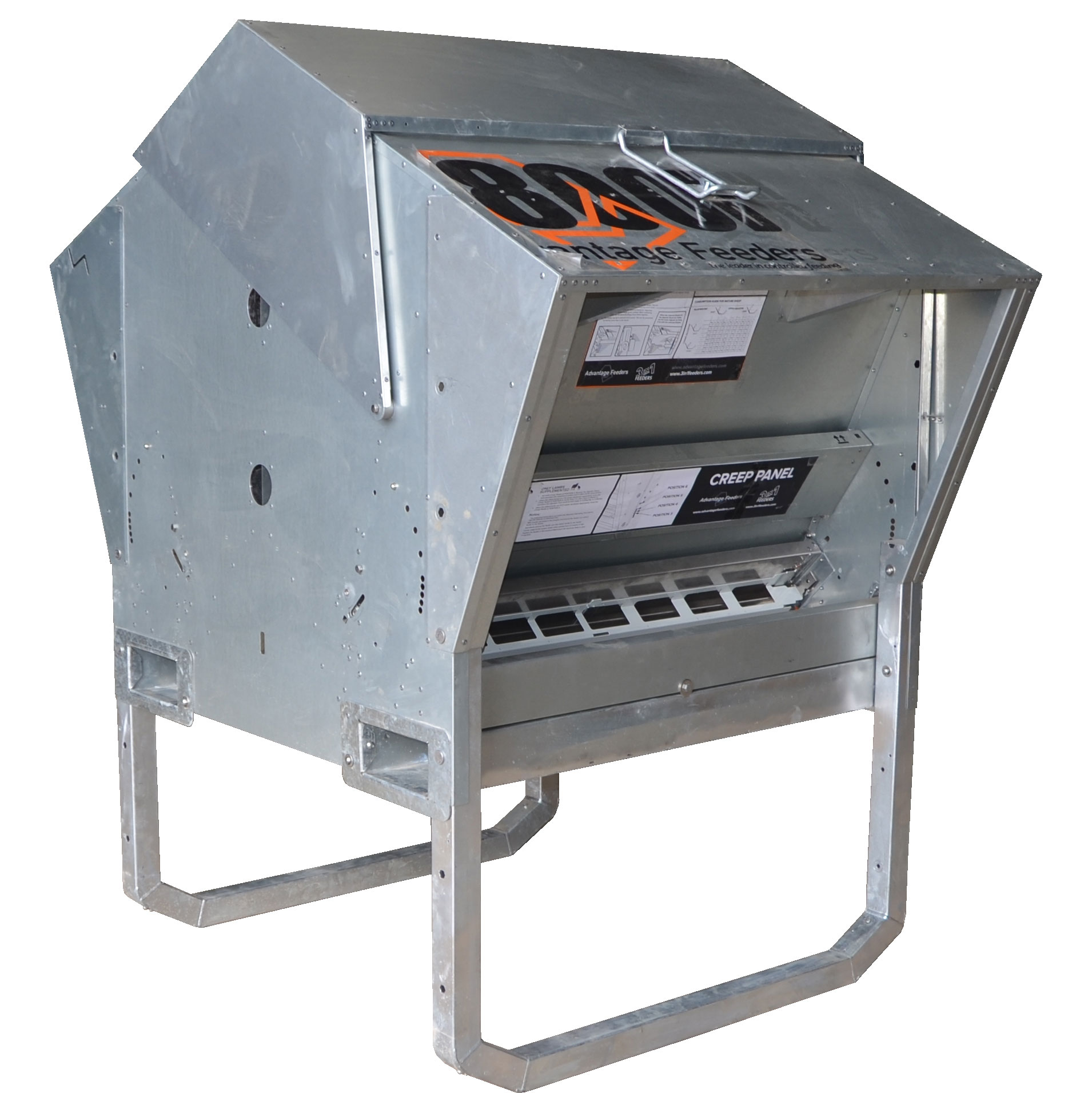

Dimensions at extended cattle height:
1200 x 1650 x 1450 (LxWxH)
Flat-pack dimensions:
2440 x 1160 x 210 (LxWxH)
Feed Volume:
800 litres
Feed weight – wheat/lupins:
600kg
Feed weight – barley/pellets:
500kg
Feed weight – oats:
400kg
Ewes or lambs (paddock): 100-125
Ewes or lambs (feedlot):
 60-75
Ewes and lambs (creep feeding):
 100-125 Combined
Cattle or calves (paddock):
 20-25
Cattle (feedlot):
 15-20
Goats (paddock):
100-125
Deer (paddock): 60-75
Pigs: 60-75
  • Reinforced stainless steel troughs
  • Reinforced stainless steel upper adjusters
  • Reinforced stainless steel lower adjusters
  • 2x adjuster guards standard
  • Adjuster guard housing when not in use
  • 2x 60mm SHS skids
  • High stability with hopper wholly over skids
  • Hot gal dipped skids
  • Laser cut corners in skids to prevent rust
  • Channel reinforced trough
  • Z275 sheetmetal
  • 45 degrees angled trough
  • 100mm feed flow area
  • Rain protection reinforcing
  • Side wall bracing
  • Channel roof pivot bracket
  • 2x 200×100 RHS tine guides
  • 2x adjuster braces
  • Dual tab adjuster braces
  • 2x locking bolts on the lower adjusters
  • Adjuster guard locking system
  • Dual positioned adjuster guard for dusty feeds
  • 4x 75mm round sight glasses
  • Vertical side wall bracing for easy feed flow
  • 2x volume stickers
  • Adjust feeder height in just 15 minutes
  • Cleaning tool supplied
  • Tube spanner supplied
  • Secure housing for tools
  • 1160mm trough length
  • Painted notch system on the adjusters
  • Drop lock pin roof locking system
  • Deep 110mm trough depth
  • Gutters on side walls drain out of feeder
  • Weather protection over the troughs
  • Reinforced roof edges
  • Mineral attachment option
  • Calf creep feeding gate option
  • Lamb creep feeding panel option
  • Rubber mat option
  • 2-year warranty
  • Standard operating procedure supplied
  • User guide supplied
  • Trial reports available
  • Purchase flat-packed or assembled
