Mobile 1000HD Grain Feeder

From: £2,090.00
+ VAT

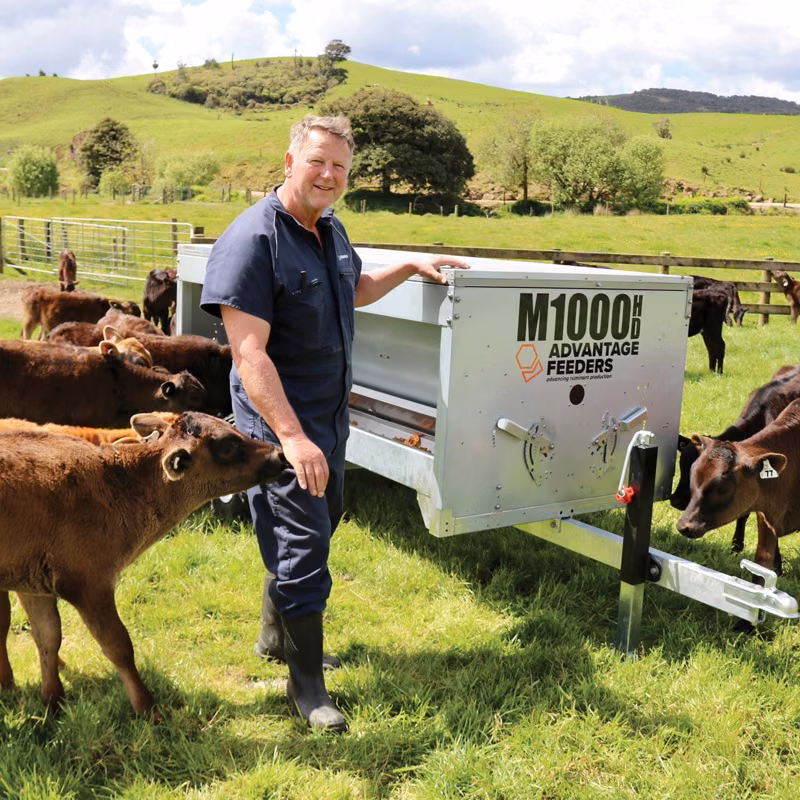

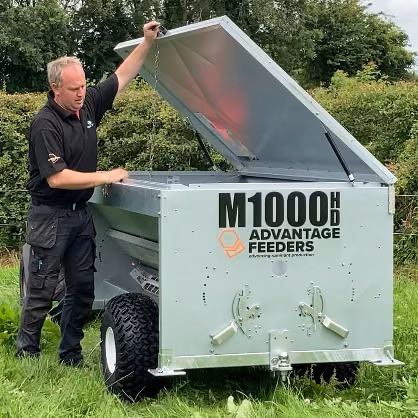

The M1000HD Grain Feeder from Advantage Feeders provides reliable feed control and flexibility, making it ideal for mixed livestock operations including cattle, sheep, goats, and deer.

With an 1,000‑litre capacity, this feeder is well-suited for paddock or feedlot use, accommodating multiple stock classes while minimising refill frequency and maximising feed efficiency - all with the added convenience of on‑farm towing.

The M1000HD has been designed specifically for navigating wet conditions and comes equipped with flotation tyres.

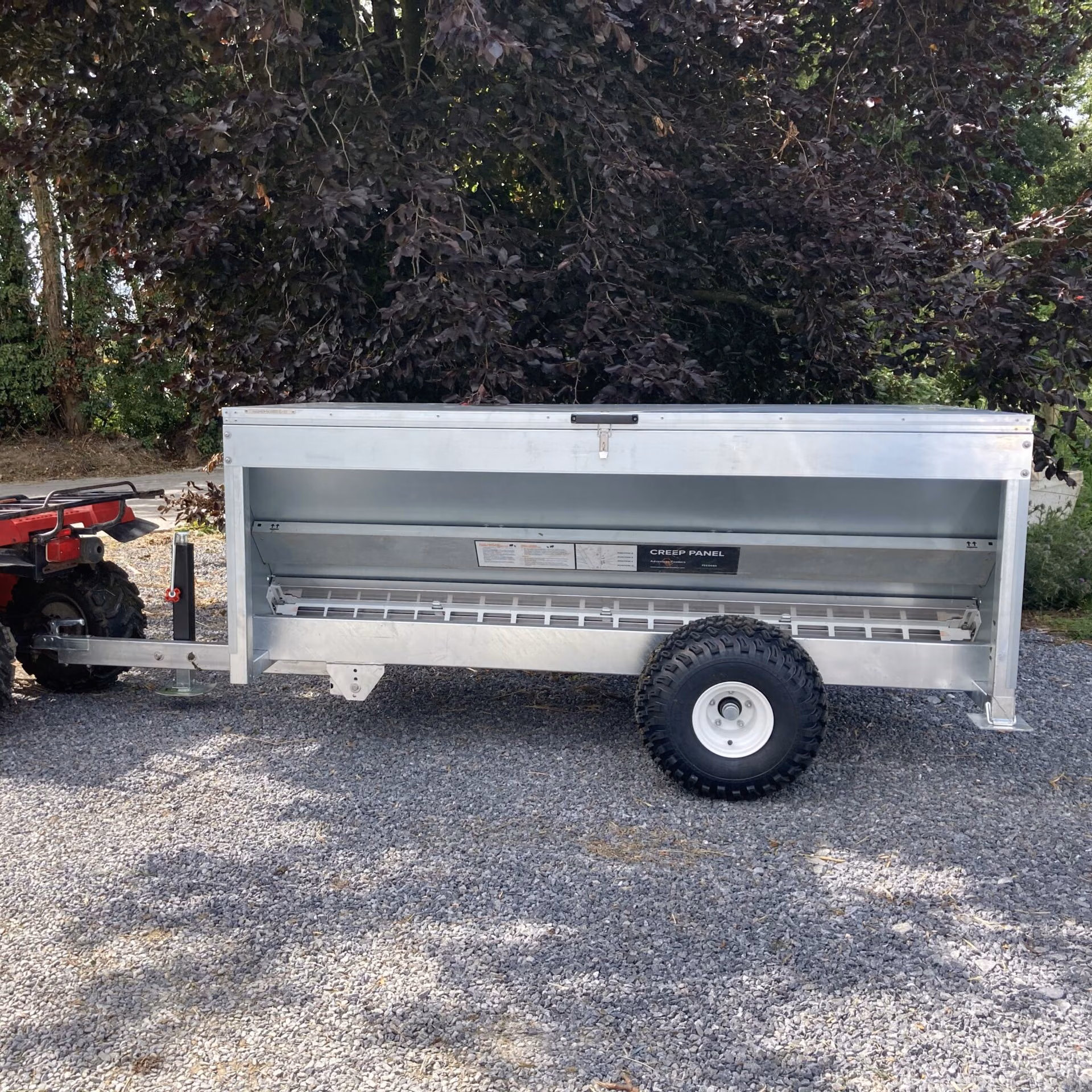

The trailer features an adjustable height hitch, and two retractable stabiliser stands to secure the feeder safely when in use. It also has a rear pull to tow multiple units together!

*Please note: Mobile units are designed for on‑farm towing only and are not approved for public road use. Do not exceed 25km per hour.

£2,090.00
+ VAT
Product Assembly Options:
  • Feed capacity: 1000L
  • Cattle or calves (paddock): 40 – 50 head
  • Cattle (feedlot): 30 – 35 head
  • Ewes or lambs (paddock): 200 – 250 head
  • Ewes or lambs (feedlot): 120 – 150 head
  • Ewes and lambs (creep feeding): 200 – 250 combined
  • Goats (paddock): 200 – 250 head
  • Deer (paddock): 120 – 150 head
  • Pigs: 120 – 150 head
  • Heavy-duty construction: Built to withstand rugged farm use
  • Adjustable height: Adjustable height settings for sheep, goats, and extended cattle heights

Dimensions & Weight

  • Overall Weight: 290 kg
  • Length: 3465 mm
  • Width: 1310 mm
  • Dimensions at Sheep Height: 3465 × 1310 × 1180mm
  • Dimensions at Cattle Height: 3465 × 1310 × 1330mm
  • Axle Rating: 1000 kg
  • Tyre Rating: 1000 kg
  • Tyre Size: 22-11-8 (6 Ply)

Feed Capacity & Weight

  • Feed Volume: 1000 litres
  • Wheat / Lupins: 770 kg
  • Barley / Pellets: 650 kg
  • Oats: 520 kg

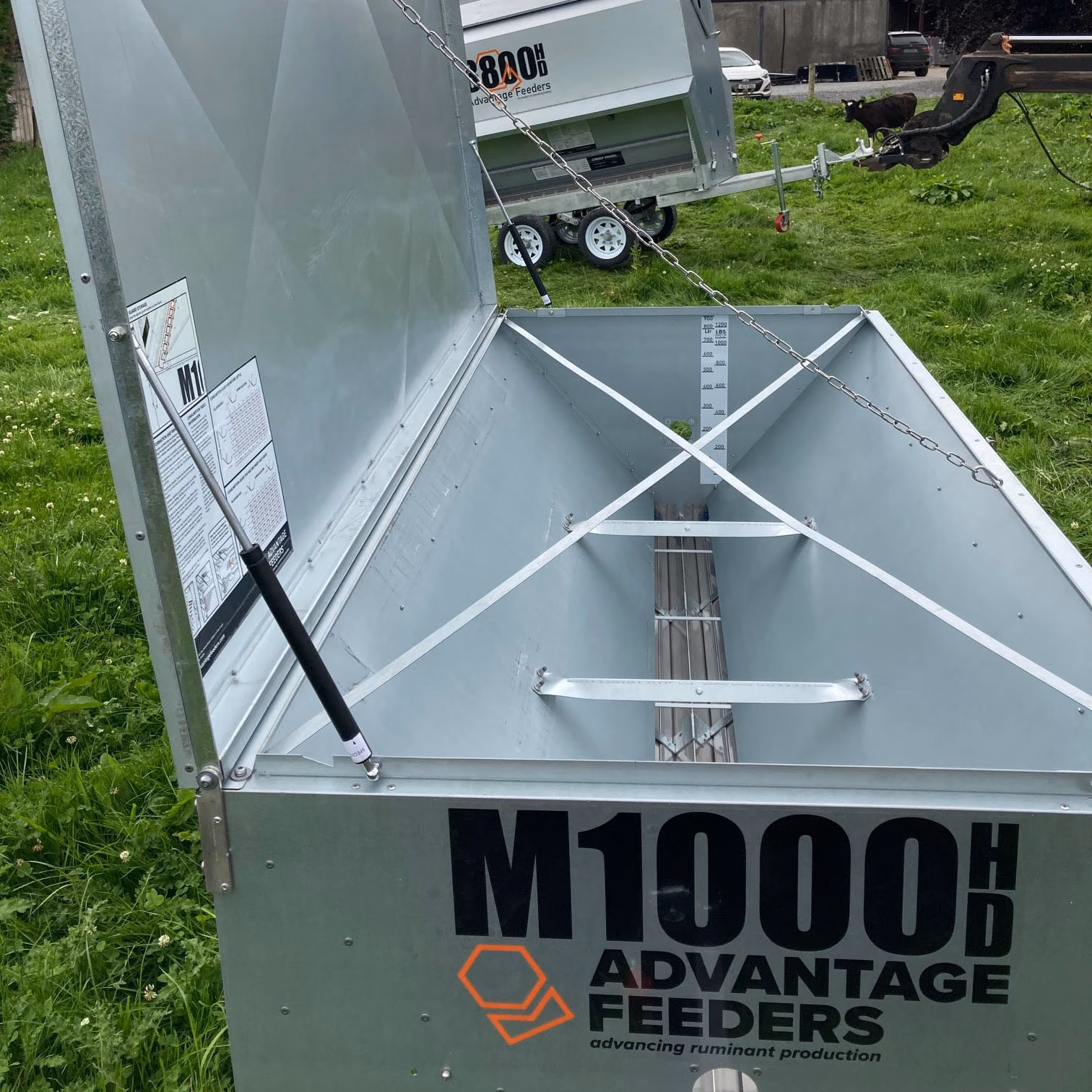

This feeder is built with reinforced stainless-steel troughs, upper adjusters, and solid lower adjusters for long-term durability, complemented by two standard adjuster guards with dedicated storage when not in use. It features two 40 mm SHS stands and offers both sheep and cattle height options, constructed from Z275 sheet metal with stainless steel and galvanised dipped components. The 45-degree angled trough, deep 110 mm trough depth, and rain protection reinforcing improve feed access and durability, while sidewall bracing, three adjuster braces, and dual tab adjuster braces enhance structural strength.

Feed control is supported by four locking bolts on the lower adjusters, an adjuster guard locking system, and a dual-positioned adjuster guard for dusty feeds. Additional features include two 75 mm round sight glasses, volume stickers, a painted notch system on the adjusters, and a 2380 mm trough length. The feeder is designed for convenience with adjustable height in around 30 minutes, supplied cleaning tools and tube spanner with secure storage, and two new tyres for mobility.

Practical additions such as sidewall gutters for drainage, reinforced roof edges and an optional mineral attachment, along with a 5-year extended warranty, standard operating procedure, user guide, and available trial reports, make it a well-rounded and user-friendly solution.

Accessories
Mineral attachments, rubber mats, creep panels and gates to extend your feeder as your operation’s needs change.

A pair of heavy‑duty Greedy Boards that bolt onto Advantage Feeders to widen the fill opening by ~400mm, making loader filling faster and reducing waste.

+ VAT

The Blower Attachment allows feed to be delivered directly from a feed truck into your Advantage Feeder, making filling faster, easier, and more efficient.
